Voltage Regulator

Material :

RESISTANCE ( 4.7K OHM )

  • Resistance is the opposition that a substance offers to the flow of electric Current.
  • The standard unit of resistance is the Ohm.
  • विद्युत मंडळात विद्युत प्रवाह म्हणजेच  इलेक्ट्रॉन्सच्या वहनाला जो घटक अडथळा निर्माण करतो त्यास विद्युतरोध असे म्हणतात
  • विद्युतरोध मोजण्याचे एकक ओहम (Ω) आहे.

Resistance Colour Code Link :

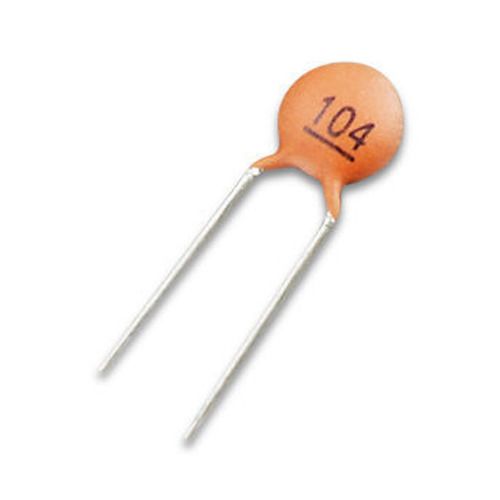

CAPACITOR ( 100NF )

  • A capacitor is a device that stores electrical energy in an electrical field.
  • The unit of electrical capacitance is the farad (abbreviated F).

Function:

1) Charging and discharging electric charges

2) Keeping the voltage at the same level

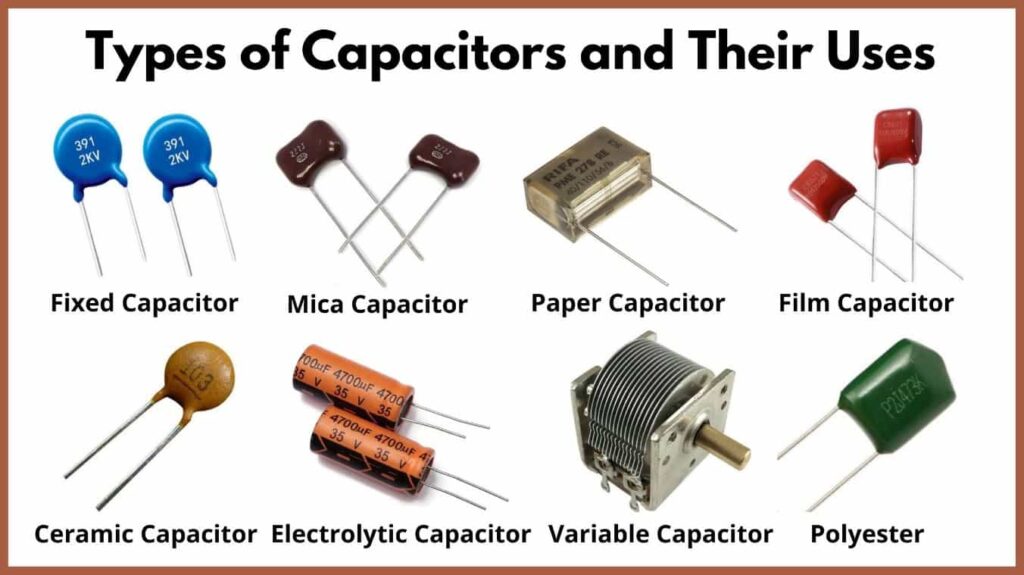

Types OF Capacitor :

LM317 IC ( TRANSISTOR )

  • The transistor is a semi conductor device used to control and generating an electrical signals.
  • LM317 is a voltage regulator IC . that IC work dropout voltage .Voltage RegulatoRegul

POTENTIAL METRE

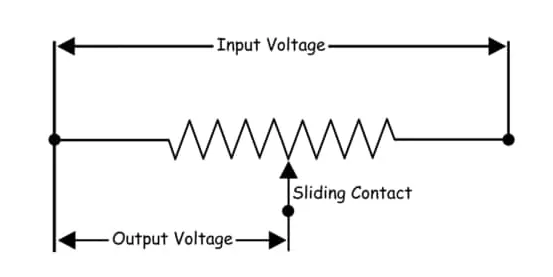

A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider

Circuit Diagram

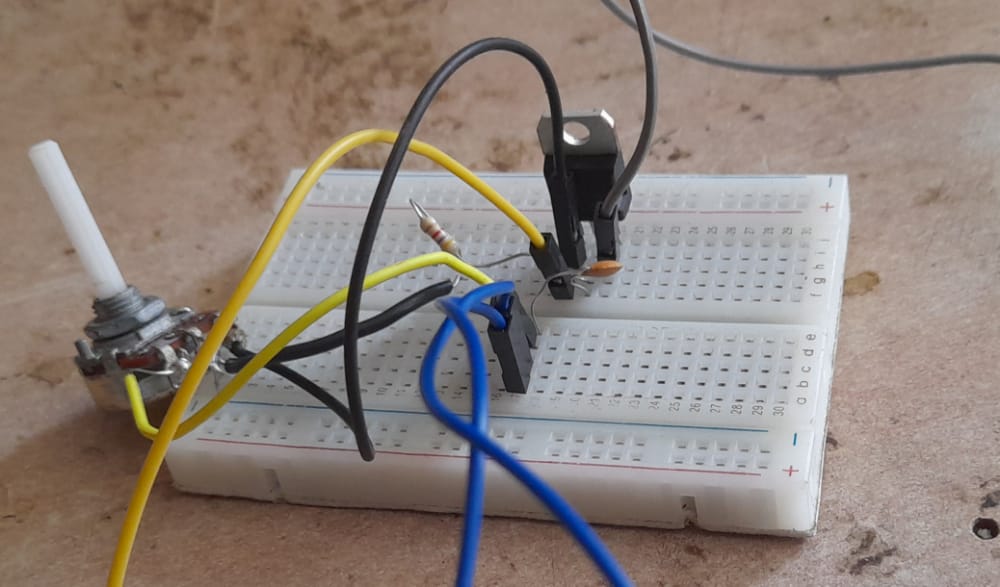

Connection

Final

Final
